SIP VE DIP MODÜL TİP DC-DC ÇEVİRİCİLER
- Giriş/çıkış İzolasyon 1000VDC (SPR01,SPB03,SCW03,SCW05,SCW08,SKE15,DKE15)
- Giriş/çıkış İzolasyon 1500VDC (SPB05,SCW12,SKA40,SKA60)
- Giriş/çıkış İzolasyon 3000VDC (SPU02)
- Ultra minyatür ve hafif boyutlar
- Serbest hava akışı soğutmalı
- Yalıtkan plastik kılıf (UL94V) (SPA01,SPB03,SPB05)
- 2:1 geniş giriş voltaj aralığı
- Korumalar: Kısa devre, aşırı yük
- 5 taraflı metal korumalı kılıf (SCW03,SCW05,SCW08,SCW12)
- 6 taraflı metal korumalı kılıf (SLW05,SKE15,DKE15,SKA40,SKA60)
- Çıkış voltajı ±%10 ayarlanabilir (DKA30,SKA40,SKA60)
- Dahili uzaktan ON/OFF kontrolü ve çıkış voltaj algılama (SKA40,SKA60)
- Dahili uzaktan ON/OFF kontrolü (DKA,TKA,SCW12)
- 2 yıl garanti
| ÜRÜN KODU | GİRİŞ | ÇIKIŞ | EBATLAR | |
|---|---|---|---|---|
| 1 WATT-SIP6 REGÜLELİ | ||||

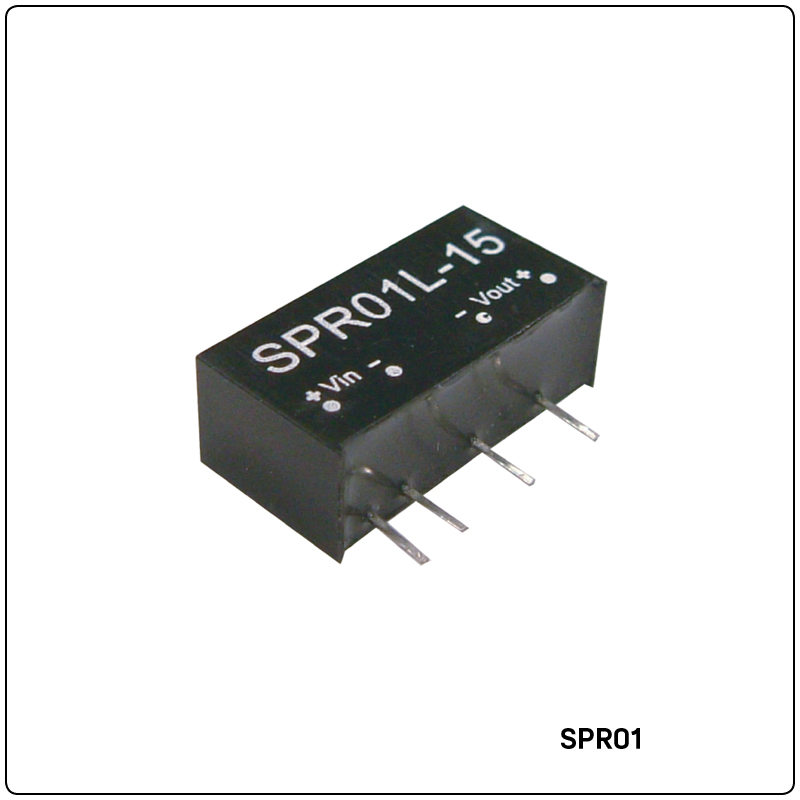

| SPR01L-05 | 5VDC ±%10 | 5VDC | 200mA | 0.77″ × 0.28″ × 0.4″ |
| SPR01L-09 | 5VDC ±%10 | 9VDC | 100mA | 0.77″ × 0.28″ × 0.4″ |
| SPR01L-12 | 5VDC ±%10 | 12VDC | 84mA | 0.77″ × 0.28″ × 0.4″ |
| SPR01L-15 | 5VDC ±%10 | 15VDC | 67mA | 0.77″ × 0.28″ × 0.4″ |
| SPR01M-05 | 12VDC ±%10 | 5VDC | 200mA | 0.77″ × 0.28″ × 0.4″ |
| SPR01M-09 | 12VDC ±%10 | 9VDC | 100mA | 0.77″ × 0.28″ × 0.4″ |
| SPR01M-12 | 12VDC ±%10 | 12VDC | 84mA | 0.77″ × 0.28″ × 0.4″ |
| SPR01M-15 | 12VDC ±%10 | 15VDC | 67mA | 0.77″ × 0.28″ × 0.4″ |
| SPR01N-05 | 24VDC±%10 | 5VDC | 200mA | 0.77″ × 0.28″ × 0.4″ |
| SPR01N-09 | 24VDC±%10 | 9VDC | 100mA | 0.77″ × 0.28″ × 0.4″ |
| SPR01N-12 | 24VDC±%10 | 12VDC | 84mA | 0.77″ × 0.28″ × 0.4″ |
| SPR01N-15 | 24VDC±%10 | 15VDC | 67mA | 0.77″ × 0.28″ × 0.4″ |

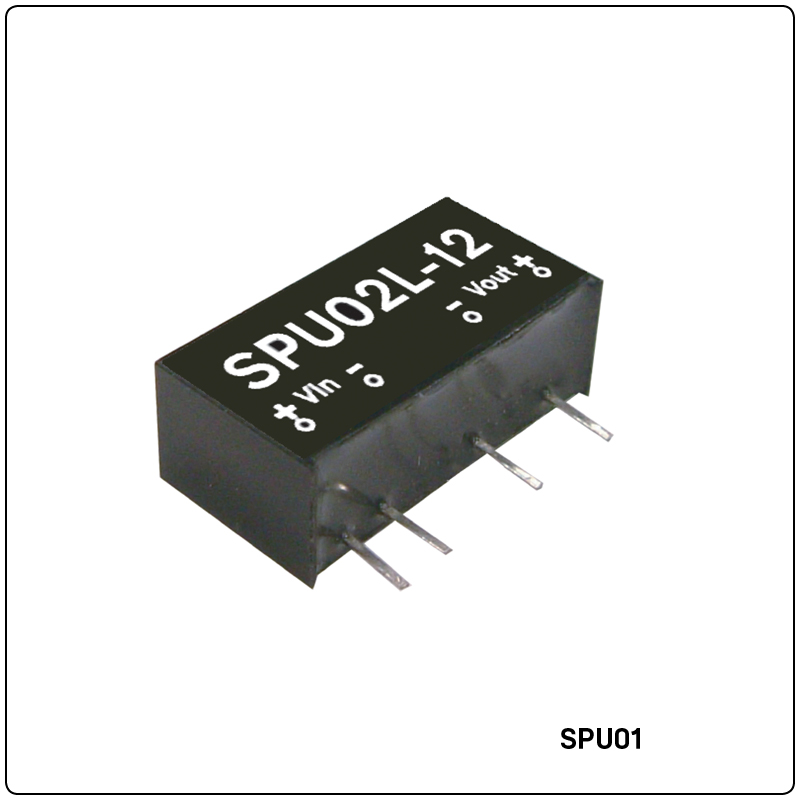

| 2 WATT-SIP7 REGÜLESİZ | ||||
| SPU02L-05 | 5VDC ±%10 | 5VDC | 400mA | 0.77″ × 0.28″ × 0.4″ |
| SPU02L-12 | 5VDC ±%10 | 12VDC | 167mA | 0.77″ × 0.28″ × 0.4″ |
| SPU02L-15 | 5VDC ±%10 | 15VDC | 133mA | 0.77″ × 0.28″ × 0.4″ |
| SPU02M-05 | 12VDC ±%10 | 5VDC | 400mA | 0.77″ × 0.28″ × 0.4″ |
| SPU02M-12 | 12VDC ±%10 | 12VDC | 167mA | 0.77″ × 0.28″ × 0.4″ |
| SPU02M-15 | 12VDC ±%10 | 15VDC | 133mA | 0.77″ × 0.28″ × 0.4″ |
| SPU02N-05 | 24VDC ±%10 | 5VDC | 400mA | 0.77″ × 0.28″ × 0.4″ |
| SPU02N-12 | 24VDC ±%10 | 12VDC | 167mA | 0.77″ × 0.28″ × 0.4″ |
| SPU02N-15 | 24VDC ±%10 | 15VDC | 133mA | 0.77″ × 0.28″ × 0.4″ |

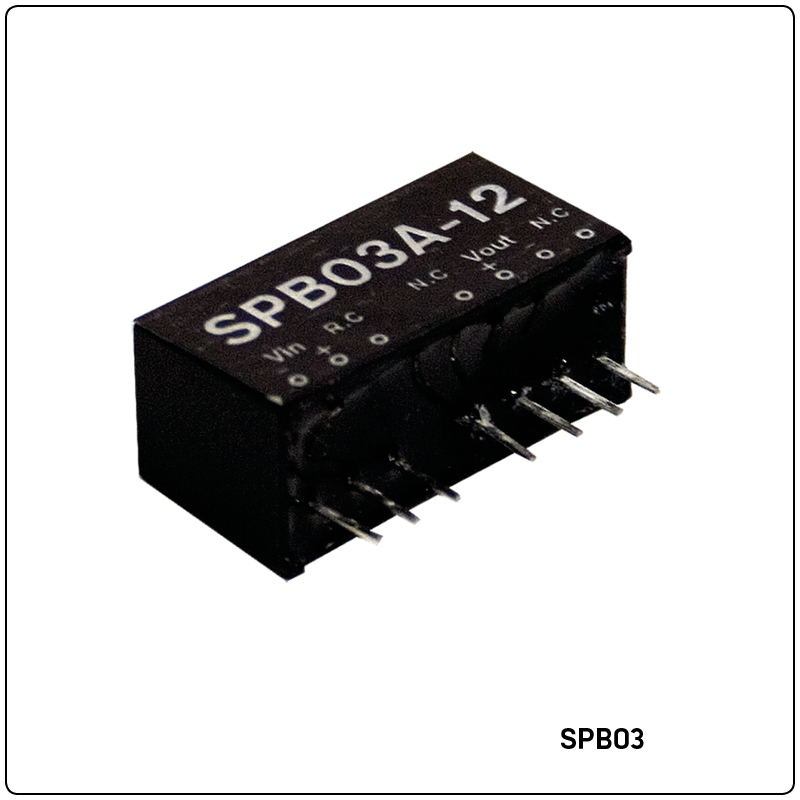

| 3 WATT-SIP8 REGÜLELİ | ||||
| SPB03E-05 | 4.5-9VDC | 5VDC | 600mA | 0.86″ × 0.36″ × 0.44″ |
| SPB03E-12 | 4.5-9VDC | 12VDC | 250mA | 0.86″ × 0.36″ × 0.44″ |
| SPB03E-15 | 4.5-9VDC | 15VDC | 200mA | 0.86″ × 0.36″ × 0.44″ |
| SPB03A-05 | 9-18VDC | 5VDC | 600mA | 0.86″ × 0.36″ × 0.44″ |
| SPB03A-12 | 9-18VDC | 12VDC | 250mA | 0.86″ × 0.36″ × 0.44″ |
| SPB03A-15 | 9-18VDC | 15VDC | 200mA | 0.86″ × 0.36″ × 0.44″ |
| SPB03B-05 | 18-36VDC | 5VDC | 600mA | 0.86″ × 0.36″ × 0.44″ |
| SPB03B-12 | 18-36VDC | 12VDC | 250mA | 0.86″ × 0.36″ × 0.44″ |
| SPB03B-15 | 18-36VDC | 15VDC | 200mA | 0.86″ × 0.36″ × 0.44″ |
| SPB03C-05 | 36-72VDC | 5VDC | 600mA | 0.86″ × 0.36″ × 0.44″ |
| SPB03C-12 | 36-72VDC | 12VDC | 250mA | 0.86″ × 0.36″ × 0.44″ |
| SPB03C-15 | 36-72VDC | 15VDC | 200mA | 0.86″ × 0.36″ × 0.44″ |

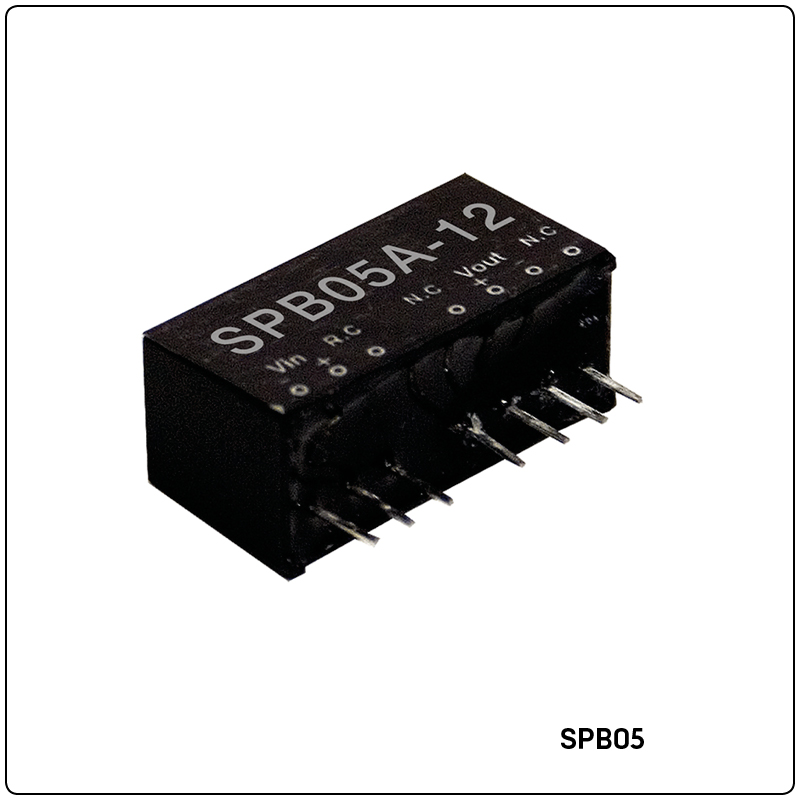

| 5 WATT-SIP8 REGÜLELİ | ||||
| SPB05A-05 | 9-18VDC | 5VDC | 1000mA | 0.86″ × 0.36″ × 0.44″ |
| SPB05A-12 | 9-18VDC | 12VDC | 417mA | 0.86″ × 0.36″ × 0.44″ |
| SPB05A-15 | 9-18VDC | 15VDC | 333mA | 0.86″ × 0.36″ × 0.44″ |
| SPB05B-05 | 18-36VDC | 5VDC | 1000mA | 0.86″ × 0.36″ × 0.44″ |
| SPB05B-12 | 18-36VDC | 12VDC | 417mA | 0.86″ × 0.36″ × 0.44″ |
| SPB05B-15 | 18-36VDC | 15VDC | 333mA | 0.86″ × 0.36″ × 0.44″ |
| SPB05C-05 | 36-72VDC | 5VDC | 1000mA | 0.86″ × 0.36″ × 0.44″ |
| SPB05C-12 | 36-72VDC | 12VDC | 417mA | 0.86″ × 0.36″ × 0.44″ |
| SPB05C-15 | 36-72VDC | 15VDC | 333mA | 0.86″ × 0.36″ × 0.44″ |
| 3 WATT-DIP24 REGÜLELİ | ||||

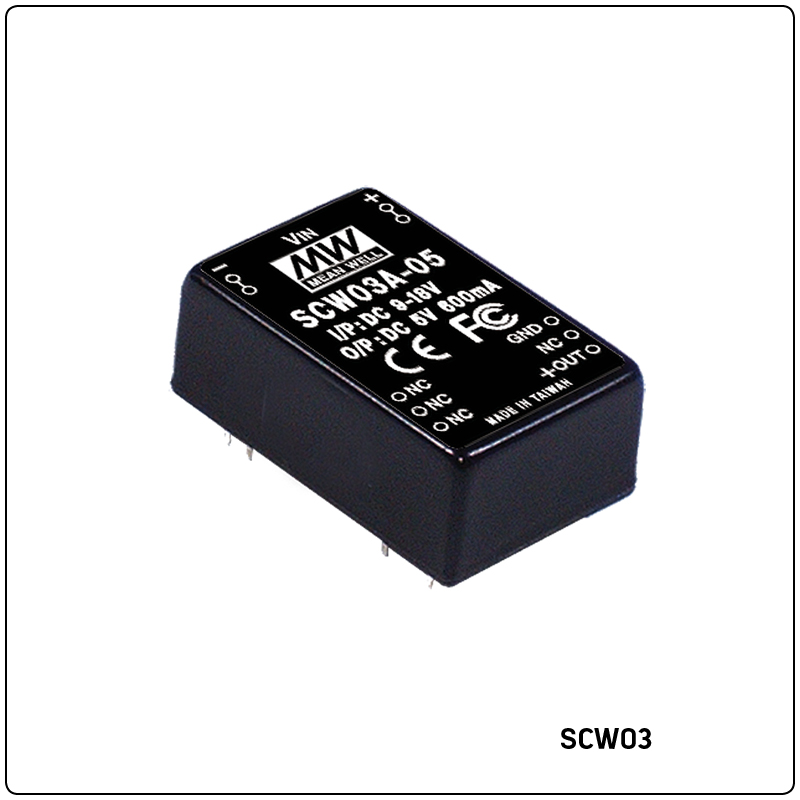

| SCW03A-05 | 9V-18V DC | 5VDC | 600mA | 1.25″ × 0.8″ × 0.48″ |
| SCW03A-12 | 9V-18V DC | 12VDC | 250mA | 1.25″ × 0.8″ × 0.48″ |
| SCW03A-15 | 9V-18V DC | 15VDC | 200mA | 1.25″ × 0.8″ × 0.48″ |
| SCW03B-05 | 18V-36V DC | 5VDC | 600mA | 1.25″ × 0.8″ × 0.48″ |
| SCW03B-12 | 18V-36V DC | 12VDC | 250mA | 1.25″ × 0.8″ × 0.48″ |
| SCW03B-15 | 18V-36V DC | 15VDC | 200mA | 1.25″ × 0.8″ × 0.48″ |
| SCW03C-05 | 36V-72V DC | 5VDC | 600mA | 1.25″ × 0.8″ × 0.48″ |
| SCW03C-12 | 36V-72V DC | 12VDC | 250mA | 1.25″ × 0.8″ × 0.48″ |
| SCW03C-15 | 36V-72V DC | 15VDC | 200mA | 1.25″ × 0.8″ × 0.48″ |
| 5 WATT-DIP24 REGÜLELİ | ||||
| SCW05A-05 | 9V-18V DC | 5VDC | 1000mA | 1.25″ × 0.8″ × 0.48″ |
| SCW05A-09 | 9V-18V DC | 9VDC | 556mA | 1.25″ × 0.8″ × 0.48″ |
| SCW05A-12 | 9V-18V DC | 12VDC | 470mA | 1.25″ × 0.8″ × 0.48″ |
| SCW05A-15 | 9V-18V DC | 15VDC | 400mA | 1.25″ × 0.8″ × 0.48″ |
| SCW05B-05 | 18V-36V DC | 5VDC | 1000mA | 1.25″ × 0.8″ × 0.48″ |
| SCW05B-09 | 18V-36V DC | 9VDC | 556mA | 1.25″ × 0.8″ × 0.48″ |
| SCW05B-12 | 18V-36V DC | 12VDC | 470mA | 1.25″ × 0.8″ × 0.48″ |
| SCW05B-15 | 18V-36V DC | 15VDC | 400mA | 1.25″ × 0.8″ × 0.48″ |
| SCW05C-05 | 36V-72V DC | 5VDC | 1000mA | 1.25″ × 0.8″ × 0.48″ |
| SCW05C-09 | 36V-72V DC | 9VDC | 556mA | 1.25″ × 0.8″ × 0.48″ |
| SCW05C-12 | 36V-72V DC | 12VDC | 470mA | 1.25″ × 0.8″ × 0.48″ |
| SCW05C-15 | 36V-72V DC | 15VDC | 400mA | 1.25″ × 0.8″ × 0.48″ |
| 5WATT-DIP 2″X1″ REGÜLELİ | ||||
| SLW05A-05 | 9V-18V DC | 5VDC | 1000mA | 2.0″ × 1.0″ × 0.44″ |
| SLW05A-09 | 9V-18V DC | 9VDC | 556mA | 2.0″ × 1.0″ × 0.44″ |
| SLW05A-12 | 9V-18V DC | 12VDC | 417mA | 2.0″ × 1.0″ × 0.44″ |
| SLW05A-15 | 9V-18V DC | 15VDC | 333mA | 2.0″ × 1.0″ × 0.44″ |
| SLW05B-05 | 18V-36V DC | 5VDC | 1000mA | 2.0″ × 1.0″ × 0.44″ |
| SLW05B-09 | 18V-36V DC | 9VDC | 556mA | 2.0″ × 1.0″ × 0.44″ |
| SLW05B-12 | 18V-36V DC | 12VDC | 417mA | 2.0″ × 1.0″ × 0.44″ |
| SLW05B-15 | 18V-36V DC | 15VDC | 333mA | 2.0″ × 1.0″ × 0.44″ |
| SLW05C-05 | 36V-72V DC | 5VDC | 1000mA | 2.0″ × 1.0″ × 0.44″ |
| SLW05C-09 | 36V-72V DC | 9VDC | 556mA | 2.0″ × 1.0″ × 0.44″ |
| SLW05C-12 | 36V-72V DC | 12VDC | 417mA | 2.0″ × 1.0″ × 0.44″ |
| SLW05C-15 | 36V-72V DC | 15VDC | 333mA | 2.0″ × 1.0″ × 0.44″ |

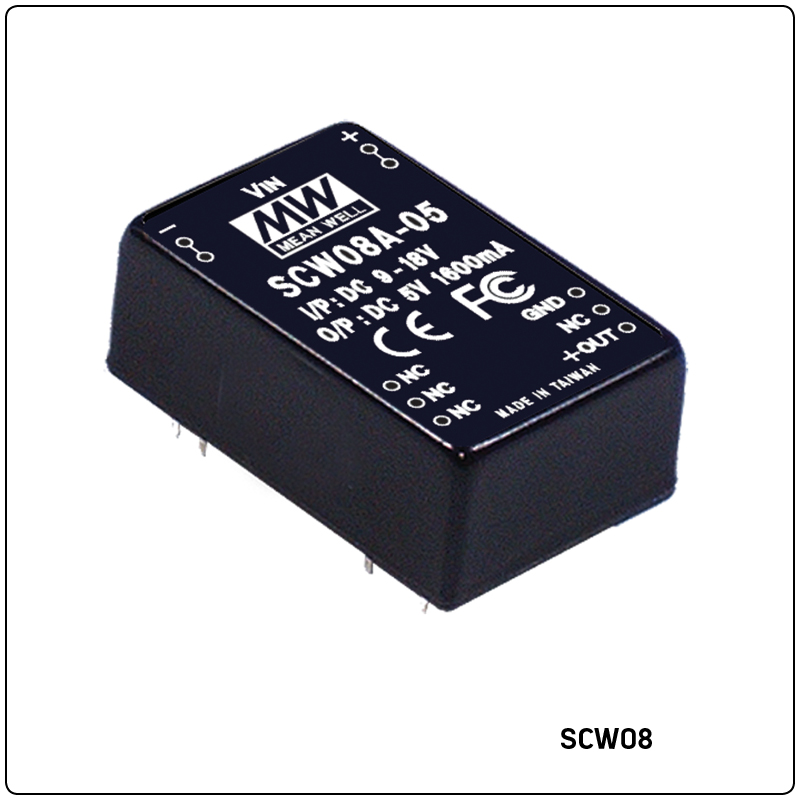

| 8 WATT-DIP24 REGÜLELİ | ||||
| SCW08A-05 | 9V-18V DC | 5VDC | 1600mA | 1.25″ × 0.8″ × 0.48″ |
| SCW08A-12 | 9V-18V DC | 12VDC | 670mA | 1.25″ × 0.8″ × 0.48″ |
| SCW08A-15 | 9V-18V DC | 15VDC | 533mA | 1.25″ × 0.8″ × 0.48″ |
| SCW08B-05 | 18V-36V DC | 5VDC | 1600mA | 1.25″ × 0.8″ × 0.48″ |
| SCW08B-12 | 18V-36V DC | 12VDC | 670mA | 1.25″ × 0.8″ × 0.48″ |
| SCW08B-15 | 18V-36V DC | 15VDC | 533mA | 1.25″ × 0.8″ × 0.48″ |
| SCW08C-05 | 36V-72V DC | 5VDC | 1600mA | 1.25″ × 0.8″ × 0.48″ |
| SCW08C-12 | 36V-72V DC | 12VDC | 670mA | 1.25″ × 0.8″ × 0.48″ |
| SCW08C-15 | 36V-72V DC | 15VDC | 533mA | 1.25″ × 0.8″ × 0.48″ |

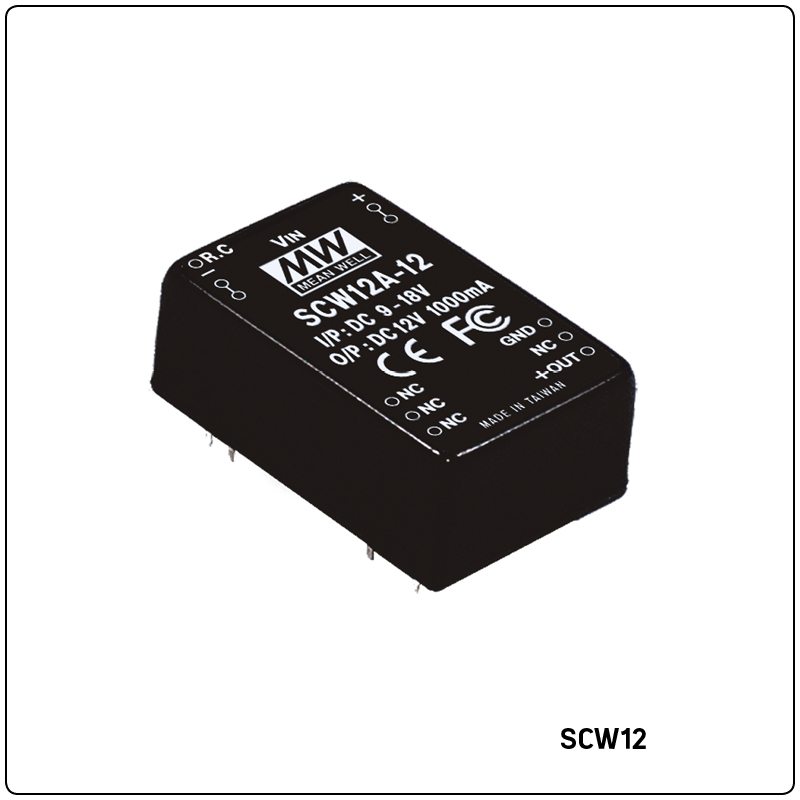

| 12 WATT-DIP24 REGÜLELİ | ||||
| SCW12A-05 | 9V-18V DC | 5VDC | 2400mA | 1.25″ × 0.8″ × 0.48″ |
| SCW12A-12 | 9V-18V DC | 12VDC | 1000mA | 1.25″ × 0.8″ × 0.48″ |
| SCW12A-15 | 9V-18V DC | 15VDC | 800mA | 1.25″ × 0.8″ × 0.48″ |
| SCW12B-05 | 18V-36V DC | 5VDC | 2400mA | 1.25″ × 0.8″ × 0.48″ |
| SCW12B-12 | 18V-36V DC | 12VDC | 1000mA | 1.25″ × 0.8″ × 0.48″ |
| SCW12B-15 | 18V-36V DC | 15VDC | 800mA | 1.25″ × 0.8″ × 0.48″ |
| SCW12C-05 | 36V-72V DC | 5VDC | 2400mA | 1.25″ × 0.8″ × 0.48″ |
| SCW12C-12 | 36V-72V DC | 12VDC | 1000mA | 1.25″ × 0.8″ × 0.48″ |
| SCW12C-15 | 36V-72V DC | 15VDC | 800mA | 1.25″ × 0.8″ × 0.48″ |
| 15 WATT-DIP2″X2″ REGÜLELİ | ||||

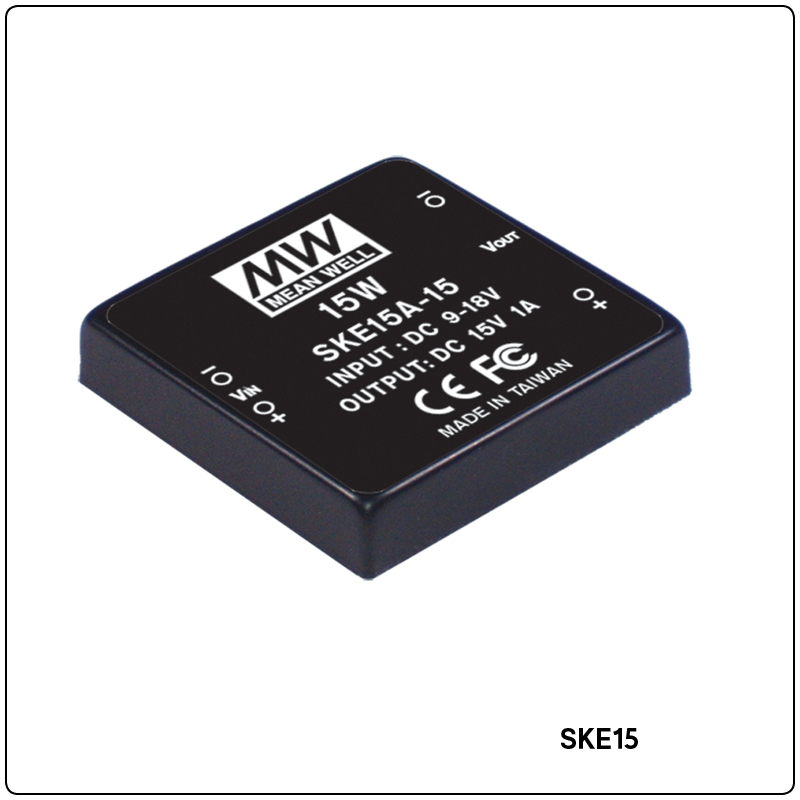

| SKE15A-05 | 9V-18V DC | 5VDC | 3000mA | 2.0″ × 2.0″ × 0.43″ |
| SKE15A-12 | 9V-18V DC | 12VDC | 1250mA | 2.0″ × 2.0″ × 0.43″ |
| SKE15A-15 | 9V-18V DC | 15VDC | 1000mA | 2.0″ × 2.0″ × 0.43″ |
| SKE15A-24 | 9V-18V DC | 24VDC | 625mA | 2.0″ × 2.0″ × 0.43″ |
| SKE15B-05 | 18V-36V DC | 5VDC | 3000mA | 2.0″ × 2.0″ × 0.43″ |
| SKE15B-12 | 18V-36V DC | 12VDC | 1250mA | 2.0″ × 2.0″ × 0.43″ |
| SKE15B-15 | 18V-36V DC | 15VDC | 1000mA | 2.0″ × 2.0″ × 0.43″ |
| SKE15B-24 | 18V-36V DC | 24VDC | 625mA | 2.0″ × 2.0″ × 0.43″ |
| SKE15C-05 | 36V-72V DC | 5VDC | 3000mA | 2.0″ × 2.0″ × 0.43″ |
| SKE15C-12 | 36V-72V DC | 12VDC | 1250mA | 2.0″ × 2.0″ × 0.43″ |
| SKE15C-15 | 36V-72V DC | 15VDC | 1000mA | 2.0″ × 2.0″ × 0.43″ |
| SKE15C-24 | 36V-72V DC | 24VDC | 625mA | 2.0″ × 2.0″ × 0.43″ |
| 15 WATT-DIP2″X2″ REGÜLELİ | ||||
| DKE15A-05 | 9V-18V DC | ±5VDC | ±1500mA | 2.0″ × 2.0″ × 0.43″ |
| DKE15A-12 | 9V-18V DC | ±12VDC | ±625mA | 2.0″ × 2.0″ × 0.43″ |
| DKE15A-15 | 9V-18V DC | ±15VDC | ±500mA | 2.0″ × 2.0″ × 0.43″ |
| DKE15A-24 | 9V-18V DC | ±24VDC | ±313mA | 2.0″ × 2.0″ × 0.43″ |
| DKE15B-05 | 18V-36V DC | ±5VDC | ±1500mA | 2.0″ × 2.0″ × 0.43″ |
| DKE15B-12 | 18V-36V DC | ±12VDC | ±625mA | 2.0″ × 2.0″ × 0.43″ |
| DKE15B-15 | 18V-36V DC | ±15VDC | ±500mA | 2.0″ × 2.0″ × 0.43″ |
| DKE15B-24 | 18V-36V DC | ±24VDC | ±313mA | 2.0″ × 2.0″ × 0.43″ |
| DKE15C-05 | 36V-72V DC | ±5VDC | ±1500mA | 2.0″ × 2.0″ × 0.43″ |
| DKE15C-12 | 36V-72V DC | ±12VDC | ±625mA | 2.0″ × 2.0″ × 0.43″ |
| DKE15C-15 | 36V-72V DC | ±15VDC | ±500mA | 2.0″ × 2.0″ × 0.43″ |
| DKE15C-24 | 36V-72V DC | ±24VDC | ±313mA | 2.0″ × 2.0″ × 0.43″ |

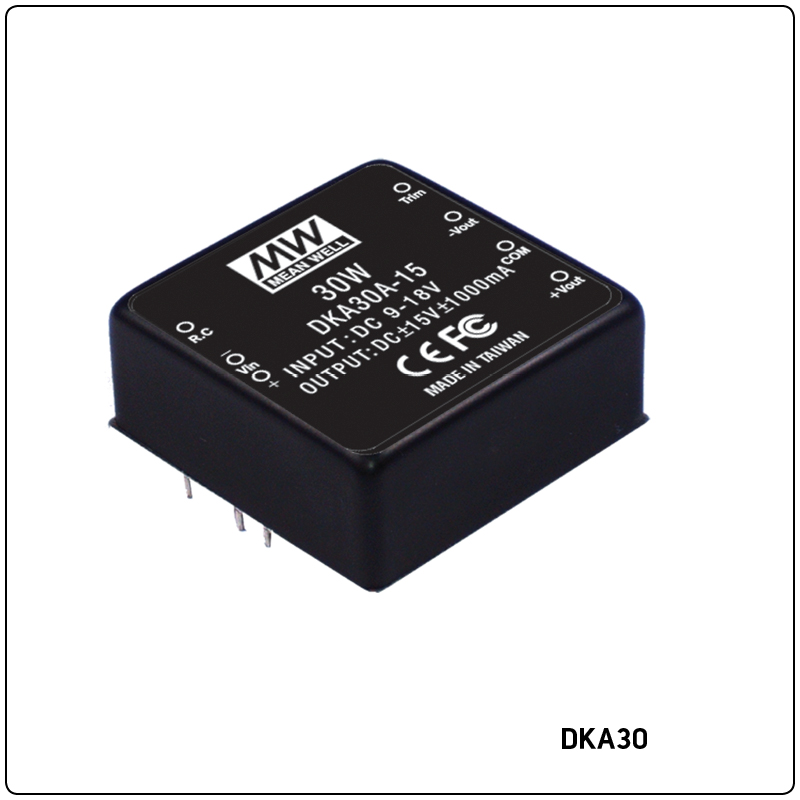

| 30 WATT-DIP2″X2″ REGÜLELİ | ||||
| DKA30A-05 | 9V-18V DC | ±5VDC | ±2500mA | 2.0″ × 2.0″ × 0.82″ |
| DKA30A-12 | 9V-18V DC | ±12VDC | ±1250mA | 2.0″ × 2.0″ × 0.82″ |
| DKA30A-15 | 9V-18V DC | ±15VDC | ±1000mA | 2.0″ × 2.0″ × 0.82″ |
| DKA30B-05 | 18V-36V DC | ±5VDC | ±2500mA | 2.0″ × 2.0″ × 0.82″ |
| DKA30B-12 | 18V-36V DC | ±12VDC | ±1250mA | 2.0″ × 2.0″ × 0.82″ |
| DKA30B-15 | 18V-36V DC | ±15VDC | ±1000mA | 2.0″ × 2.0″ × 0.82″ |
| DKA30C-05 | 36V-72V DC | ±5VDC | ±2500mA | 2.0″ × 2.0″ × 0.82″ |
| DKA30C-12 | 36V-72V DC | ±12VDC | ±1250mA | 2.0″ × 2.0″ × 0.82″ |
| DKA30C-15 | 36V-72V DC | ±15VDC | ±1000mA | 2.0″ × 2.0″ × 0.82″ |

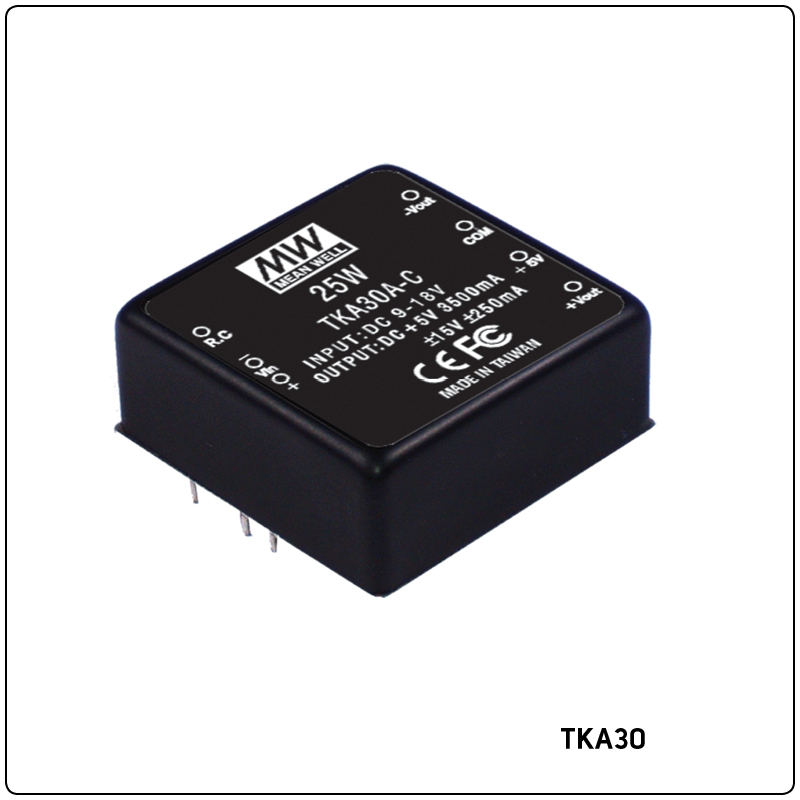

| 30 WATT-DIP2″X2″ REGÜLELİ | ||||
| TKA30A-B | 9V-18V DC | +5 /±12VDC | 3500/±310mA | 2.0″ × 2.0″ × 0.82″ |
| TKA30A-C | 9V-18V DC | +5 /±15VDC | 3500/±250mA | 2.0″ × 2.0″ × 0.82″ |
| TKA30B-B | 18V-36V DC | +5 /±12VDC | 3500/±310mA | 2.0″ × 2.0″ × 0.82″ |
| TKA30B-C | 18V-36V DC | +5 /±15VDC | 3500/±250mA | 2.0″ × 2.0″ × 0.82″ |
| TKA30C-B | 36V-72V DC | +5 /±12VDC | 3500/±310mA | 2.0″ × 2.0″ × 0.82″ |
| TKA30C-C | 36V-72V DC | +5 /±12VDC | 3500/±250mA | 2.0″ × 2.0″ × 0.82″ |
| 40 WATT-DIP 2″X2″ REGÜLELİ | ||||

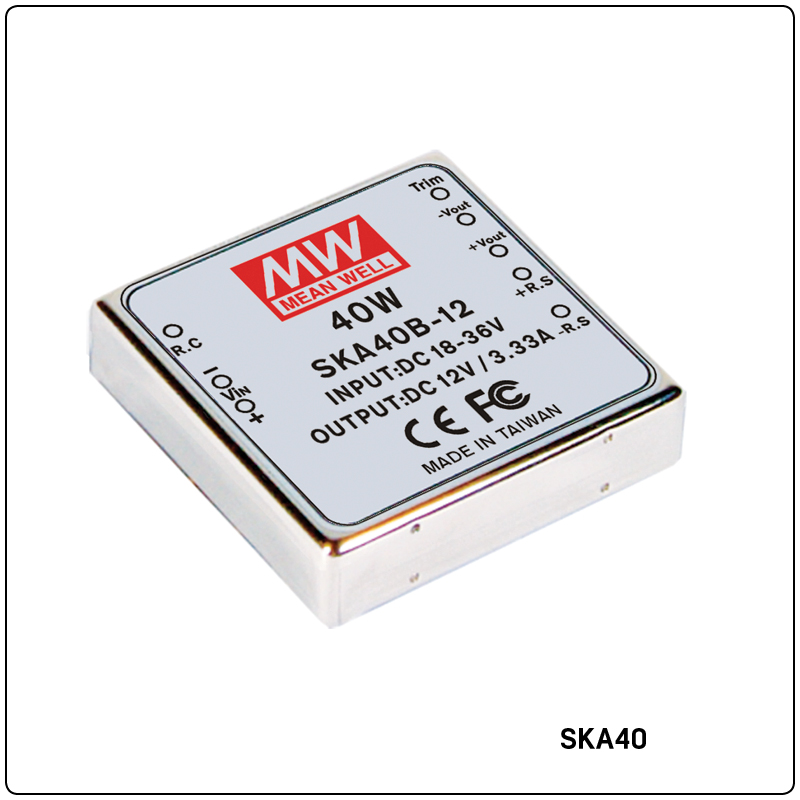

| SKA40A-05 | 9V-18V DC | 5VDC | 7A | 2.0″ × 2.0″ × 0.43″ |
| SKA40A-12 | 9V-18V DC | 12VDC | 3.33A | 2.0″ × 2.0″ × 0.43″ |
| SKA40A-15 | 9V-18V DC | 15VDC | 2.67A | 2.0″ × 2.0″ × 0.43″ |
| SKA40B-05 | 18V-36V DC | 5VDC | 7A | 2.0″ × 2.0″ × 0.43″ |
| SKA40B-12 | 18V-36V DC | 12VDC | 3.33A | 2.0″ × 2.0″ × 0.43″ |
| SKA40B-15 | 18V-36V DC | 15VDC | 2.67A | 2.0″ × 2.0″ × 0.43″ |
| SKA40C-05 | 36V-75V DC | 5VDC | 7A | 2.0″ × 2.0″ × 0.43″ |
| SKA40C-12 | 36V-75V DC | 12VDC | 3.33A | 2.0″ × 2.0″ × 0.43″ |
| SKA40C-15 | 36V-75V DC | 15VDC | 2.67A | 2.0″ × 2.0″ × 0.43″ |

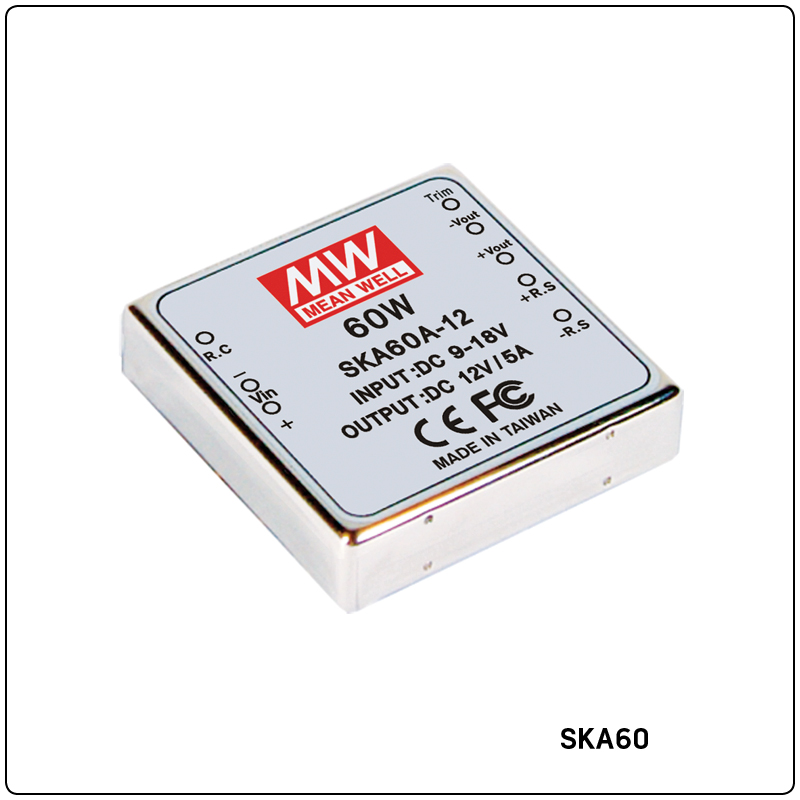

| 60 WATT-DIP 2″X2″ REGÜLELİ | ||||
| SKA60A-05 | 9V-18V DC | 5VDC | 12A | 2.0″ × 2.0″ × 0.43″ |
| SKA60A-12 | 9V-18V DC | 12VDC | 5A | 2.0″ × 2.0″ × 0.43″ |
| SKA60A-15 | 9V-18V DC | 15VDC | 4A | 2.0″ × 2.0″ × 0.43″ |
| SKA60B-05 | 18V-36V DC | 5VDC | 12A | 2.0″ × 2.0″ × 0.43″ |
| SKA60B-12 | 18V-36V DC | 12VDC | 5A | 2.0″ × 2.0″ × 0.43″ |
| SKA60B-15 | 18V-36V DC | 15VDC | 4A | 2.0″ × 2.0″ × 0.43″ |
| SKA60C-05 | 36V-75V DC | 5VDC | 12A | 2.0″ × 2.0″ × 0.43″ |
| SKA60C-12 | 36V-75V DC | 12VDC | 5A | 2.0″ × 2.0″ × 0.43″ |
| SKA60C-15 | 36V-75V DC | 15VDC | 4A | 2.0″ × 2.0″ × 0.43″ |
- Ebatlar (Boy x En x Yükseklik) mm.
