HLG Serisi LED Güç Kaynakları



HLG Serisi PFC Fonksiyonlu Metal Kasa LED Güç Kaynakları

  • Universal AC giriş 90-305 VAC; 127-431VDC
  • Sabit akım ve sabit voltaj modları
  • %96’ya kadar yüksek verimlilik oranı
  • Class II güç ünitesi
  • İç veya dış mekan kullanımına uygun IP65/IP 67 tasarımı, metal kasa
  • Korumalar: Kısa devre/Aşırı Yük/Aşırı Voltaj/Aşırı Sıcaklık
  • Dahili aktif PFC fonksiyonu
  • Serbest hava akımı soğutmalı
  • %100 tam yük testi

MODEL SEÇİMİ:

A TİPİ: IP65 .Çıkış voltaj ve sabit akım seviyesi dahili potansiyometre ile ayarlanabilir.

B TİPİ: IP67.Sabit akım seviyesi 0-10VDC ,PWM Sinyal veya direnç ile dimleme için çıkan kabloya bağlantı yapılarak ayarlanabilir.

C TİPİ: Giriş ve çıkış bağlantısı için terminal bloğu. Çıkış voltaj ve sabit akım seviyesi dahili potansiyometre ile ayarlanabilir.

BOŞ (BLANK) TİP : IP67.Giriş ve çıkış bağlantısı kablo ile yapılır.

D TİPİ(OPSİYON): IP67 . Timer dimming fonksiyonu. Detaylar için iletişime geçiniz.

MODEL GİRİŞ ÇIKIfi EBATLAR

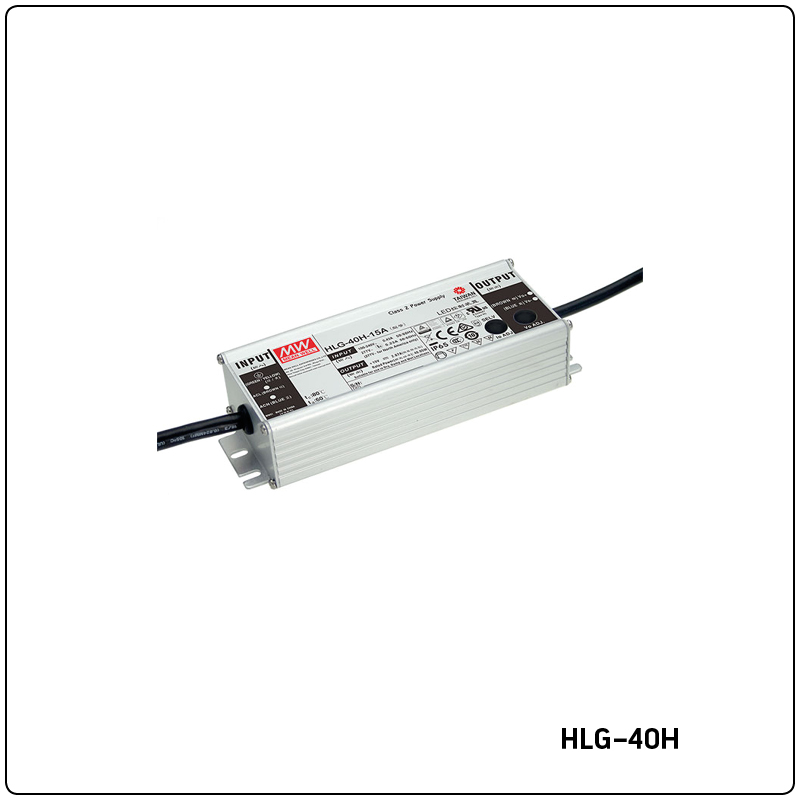

40W
HLG-40H-12A 90-305VAC 127-431VDC 12VDC 3.33A 171 X 61.5 X 36.8 mm
HLG-40H-15A 90-305VAC 127-431VDC 15VDC 2.67A 171 X 61.5 X 36.8 mm
HLG-40H-20A 90-305VAC 127-431VDC 20VDC 2A 171 X 61.5 X 36.8 mm
HLG-40H-24A 90-305VAC 127-431VDC 24VDC 1.67A 171 X 61.5 X 36.8 mm
HLG-40H-30A 90-305VAC 127-431VDC 30VDC 1.34A 171 X 61.5 X 36.8 mm
HLG-40H-36A 90-305VAC 127-431VDC 36VDC 1.12A 171 X 61.5 X 36.8 mm
HLG-40H-42A 90-305VAC 127-431VDC 42VDC 0.96A 171 X 61.5 X 36.8 mm
HLG-40H-48A 90-305VAC 127-431VDC 48VDC 0.84A 171 X 61.5 X 36.8 mm
HLG-40H-54A 90-305VAC 127-431VDC 54VDC 0.75A 171 X 61.5 X 36.8 mm

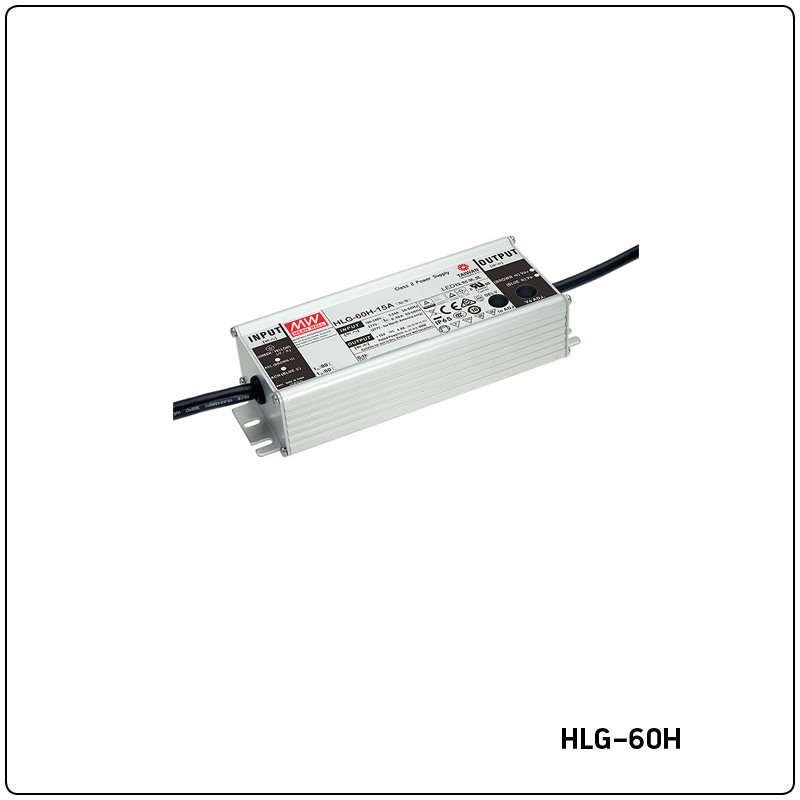

60W
HLG-60H-15A 90-305VAC 127-431VDC 15VDC 4A 171 X 61.5 X 36.8 mm
HLG-60H-20A 90-305VAC 127-431VDC 20VDC 3A 171 X 61.5 X 36.8 mm
HLG-60H-24A 90-305VAC 127-431VDC 24VDC 2.5A 171 X 61.5 X 36.8 mm
HLG-60H-30A 90-305VAC 127-431VDC 30VDC 2A 171 X 61.5 X 36.8 mm
HLG-60H-36A 90-305VAC 127-431VDC 36VDC 1.7A 171 X 61.5 X 36.8 mm
HLG-60H-42A 90-305VAC 127-431VDC 42VDC 1.45A 171 X 61.5 X 36.8 mm
HLG-60H-48A 90-305VAC 127-431VDC 48VDC 1.3A 171 X 61.5 X 36.8 mm
HLG-60H-54A 90-305VAC 127-431VDC 54VDC 1.15A 171 X 61.5 X 36.8 mm

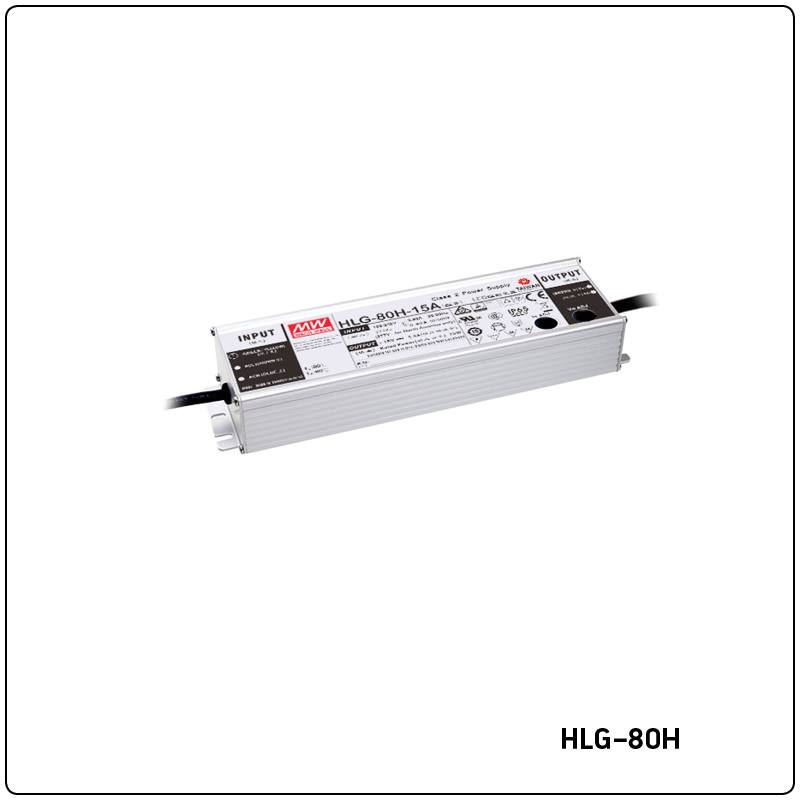

80W
HLG-80H-12A 90-305VAC 127-431VDC 12VDC 5A 195.6 X 61.5 X 38.8 mm
HLG-80H-15A 90-305VAC 127-431VDC 15VDC 5A 195.6 X 61.5 X 38.8 mm
HLG-80H-20A 90-305VAC 127-431VDC 20VDC 4A 195.6 X 61.5 X 38.8 mm
HLG-80H-24A 90-305VAC 127-431VDC 24VDC 3.4A 195.6 X 61.5 X 38.8 mm
HLG-80H-30A 90-305VAC 127-431VDC 30VDC 2.7A 195.6 X 61.5 X 38.8 mm
HLG-80H-36A 90-305VAC 127-431VDC 36VDC 2.3A 195.6 X 61.5 X 38.8 mm
HLG-80H-42A 90-305VAC 127-431VDC 42VDC 1.95A 195.6 X 61.5 X 38.8 mm
HLG-80H-48A 90-305VAC 127-431VDC 48VDC 1.7A 195.6 X 61.5 X 38.8 mm
HLG-80H-54A 90-305VAC 127-431VDC 54VDC 1.5A 195.6 X 61.5 X 38.8 mm

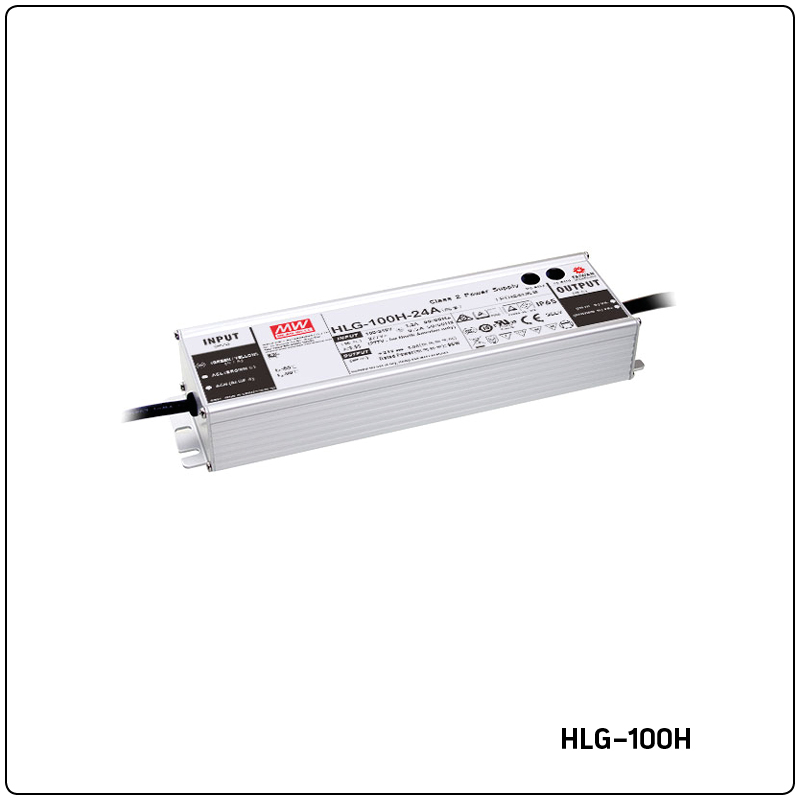

100W
HLG-100H-20A 90-305VAC 127-431VDC 20VDC 4.8A 220 X 68 X 38.8 mm
HLG-100H-24A 90-305VAC 127-431VDC 24VDC 4A 220 X 68 X 38.8 mm
HLG-100H-30A 90-305VAC 127-431VDC 30VDC 3.2A 220 X 68 X 38.8 mm
HLG-100H-36A 90-305VAC 127-431VDC 36VDC 2.65A 220 X 68 X 38.8 mm
HLG-100H-42A 90-305VAC 127-431VDC 42VDC 2.28A 220 X 68 X 38.8 mm
HLG-100H-48A 90-305VAC 127-431VDC 48VDC 2A 220 X 68 X 38.8 mm
HLG-100H-54A 90-305VAC 127-431VDC 54VDC 1.77A 220 X 68 X 38.8 mm

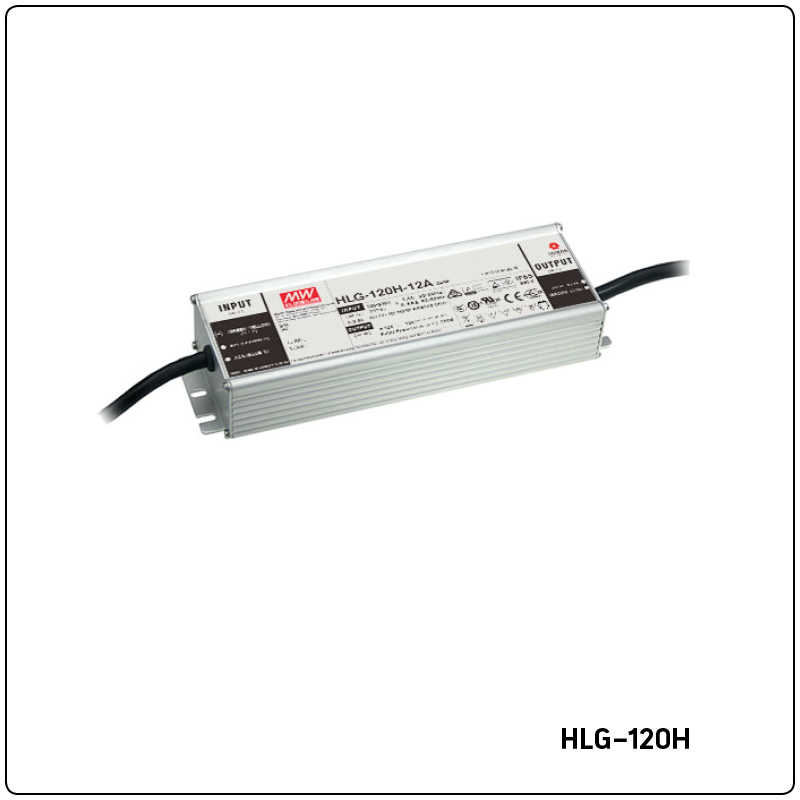

120W
HLG-120H-12A 90-305VAC 127-431VDC 12VDC 10A 220 X 68 X38.8 mm
HLG-120H-15A 90-305VAC 127-431VDC 15VDC 8A 220 X 68 X38.8 mm
HLG-120H-20A 90-305VAC 127-431VDC 20VDC 6A 220 X 68 X38.8 mm
HLG-120H-24A 90-305VAC 127-431VDC 24VDC 5A 220 X 68 X38.8 mm
HLG-120H-30A 90-305VAC 127-431VDC 30VDC 4A 220 X 68 X38.8 mm
HLG-120H-36A 90-305VAC 127-431VDC 36VDC 3.4A 220 X 68 X38.8 mm
HLG-120H-42A 90-305VAC 127-431VDC 42VDC 2.9A 220 X 68 X38.8 mm
HLG-120H-48A 90-305VAC 127-431VDC 48VDC 2.5A 220 X 68 X38.8 mm
HLG-120H-54A 90-305VAC 127-431VDC 54VDC 2.3A 220 X 68 X38.8 mm

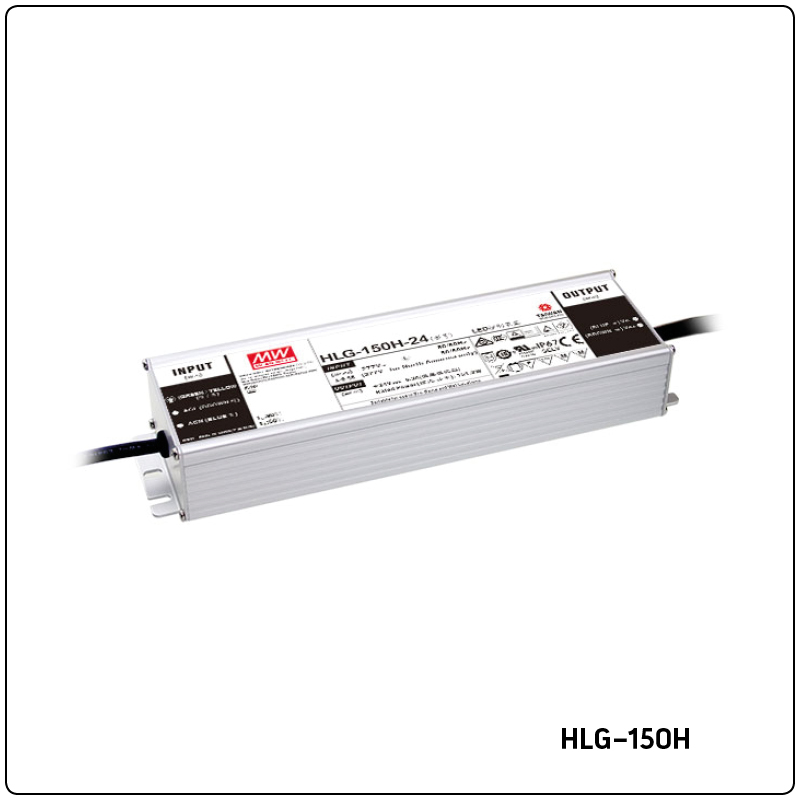

150W
HLG-150H-12A 90-305VAC 127-431VDC 12VDC 12.5A 228 X 68 X38.8 mm
HLG-150H-15A 90-305VAC 127-431VDC 15VDC 10A 228 X 68 X38.8 mm
HLG-150H-20A 90-305VAC 127-431VDC 20VDC 7.5A 228 X 68 X38.8 mm
HLG-150H-24A 90-305VAC 127-431VDC 24VDC 6.3A 228 X 68 X38.8 mm
HLG-150H-30A 90-305VAC 127-431VDC 30VDC 5A 228 X 68 X38.8 mm
HLG-150H-36A 90-305VAC 127-431VDC 36VDC 4.2A 228 X 68 X38.8 mm
HLG-150H-42A 90-305VAC 127-431VDC 42VDC 3.6A 228 X 68 X38.8 mm
HLG-150H-48A 90-305VAC 127-431VDC 48VDC 3.2A 228 X 68 X38.8 mm
HLG-150H-54A 90-305VAC 127-431VDC 54VDC 2.8A 228 X 68 X38.8 mm

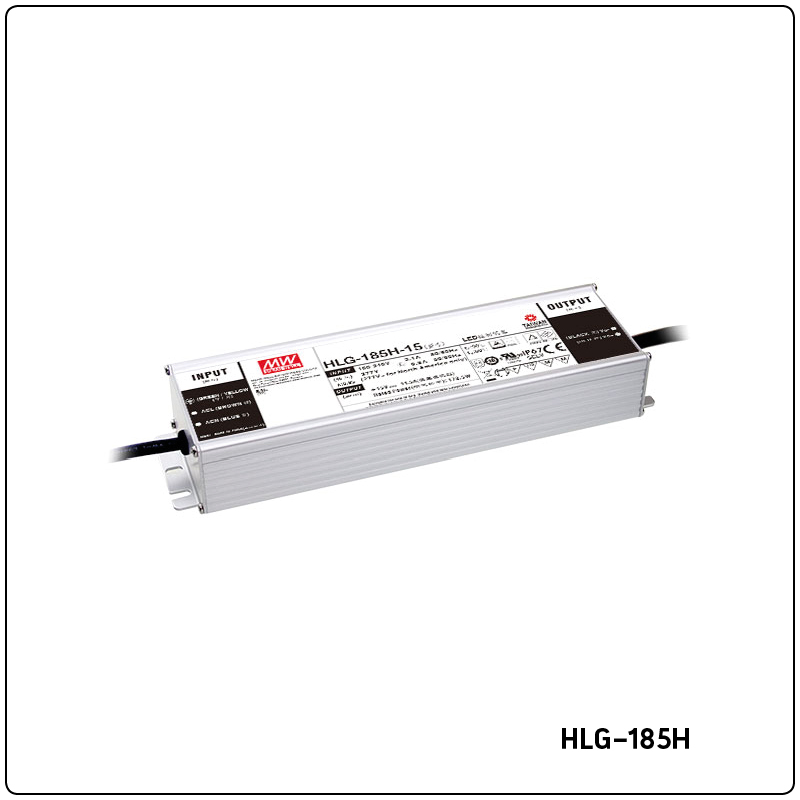

185W
HLG-185H-12A 90-305VAC 127-431VDC 12VDC 13A 228 X 68 X 38.8 mm
HLG-185H-15A 90-305VAC 127-431VDC 15VDC 11.5A 228 X 68 X 38.8 mm
HLG-185H-20A 90-305VAC 127-431VDC 20VDC 9.3A 228 X 68 X 38.8 mm
HLG-185H-24A 90-305VAC 127-431VDC 24VDC 7.8A 228 X 68 X 38.8 mm
HLG-185H-30A 90-305VAC 127-431VDC 30VDC 6.2A 228 X 68 X 38.8 mm
HLG-185H-36A 90-305VAC 127-431VDC 36VDC 5.2A 228 X 68 X 38.8 mm
HLG-185H-42A 90-305VAC 127-431VDC 42VDC 4.4A 228 X 68 X 38.8 mm
HLG-185H-48A 90-305VAC 127-431VDC 48VDC 3.9A 228 X 68 X 38.8 mm
HLG-185H-54A 90-305VAC 127-431VDC 54VDC 3.45A 228 X 68 X 38.8 mm

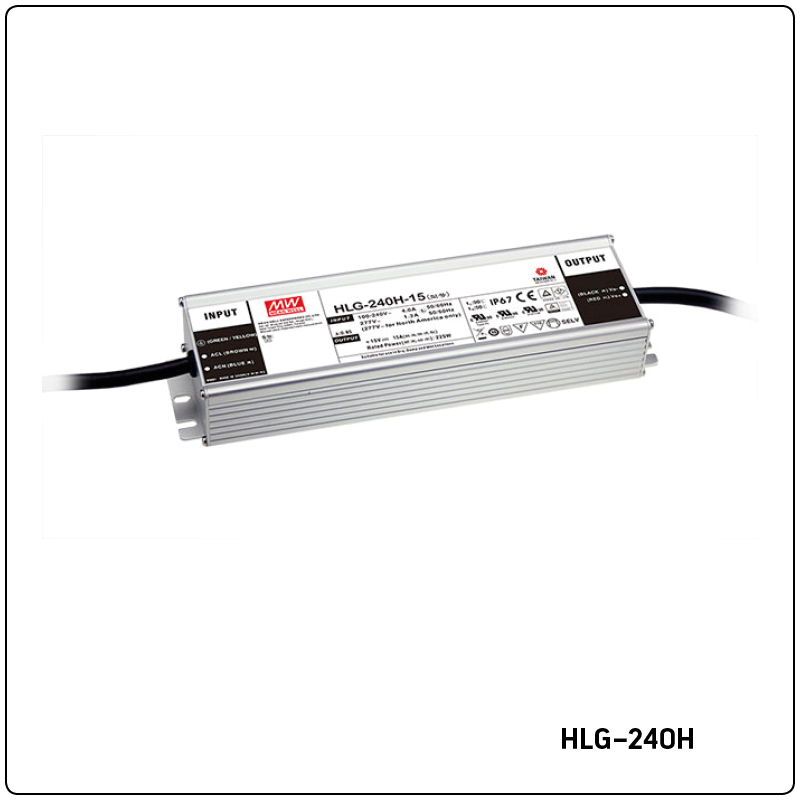

240W
HLG-240H-12A 90-305VAC 127-431VDC 12VDC 16A 244.2 X 68 X 38.8 mm
HLG-240H-15A 90-305VAC 127-431VDC 15VDC 15A 244.2 X 68 X 38.8 mm
HLG-240H-20A 90-305VAC 127-431VDC 20VDC 12A 244.2 X 68 X 38.8 mm
HLG-240H-24A 90-305VAC 127-431VDC 24VDC 10A 244.2 X 68 X 38.8 mm
HLG-240H-30A 90-305VAC 127-431VDC 30VDC 8A 244.2 X 68 X 38.8 mm
HLG-240H-36A 90-305VAC 127-431VDC 36VDC 6.7A 244.2 X 68 X 38.8 mm
HLG-240H-42A 90-305VAC 127-431VDC 42VDC 5.72A 244.2 X 68 X 38.8 mm
HLG-240H-48A 90-305VAC 127-431VDC 48VDC 5A 244.2 X 68 X 38.8 mm
HLG-240H-54A 90-305VAC 127-431VDC 54VDC 4.45A 244.2 X 68 X 38.8 mm

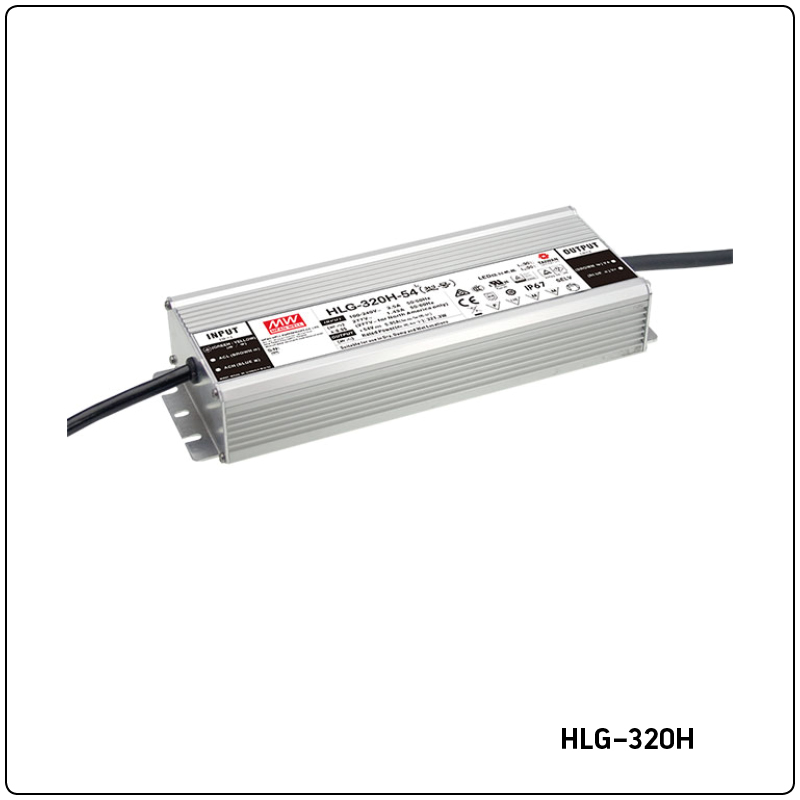

320W
HLG-320H-12A 90-305VAC 127-431VDC 12VDC 22A 252 X 90 X 43.8 mm
HLG-320H-15A 90-305VAC 127-431VDC 15VDC 19A 252 X 90 X 43.8 mm
HLG-320H-20A 90-305VAC 127-431VDC 20VDC 15A 252 X 90 X 43.8 mm
HLG-320H-24A 90-305VAC 127-431VDC 24VDC 13.34A 252 X 90 X 43.8 mm
HLG-320H-30A 90-305VAC 127-431VDC 30VDC 10.7A 252 X 90 X 43.8 mm
HLG-320H-36A 90-305VAC 127-431VDC 36VDC 8.9A 252 X 90 X 43.8 mm
HLG-320H-42A 90-305VAC 127-431VDC 42VDC 7.65A 252 X 90 X 43.8 mm
HLG-320H-48A 90-305VAC 127-431VDC 48VDC 6.7A 252 X 90 X 43.8 mm
HLG-320H-54A 90-305VAC 127-431VDC 54VDC 5.95A 252 X 90 X 43.8 mm
480W
HLG-480H-24A 90-305VAC 127-431VDC 24VDC 20A 262 X 125 X 43.8 mm
HLG-480H-30A 90-305VAC 127-431VDC 30VDC 16A 262 X 125 X 43.8 mm
HLG-480H-36A 90-305VAC 127-431VDC 36VDC 13.3A 262 X 125 X 43.8 mm
HLG-480H-42A 90-305VAC 127-431VDC 42VDC 11.4A 262 X 125 X 43.8 mm
HLG-480H-48A 90-305VAC 127-431VDC 48VDC 10A 262 X 125 X 43.8 mm
HLG-480H-54A 90-305VAC 127-431VDC 54VDC 8.9A 262 X 125 X 43.8 mm

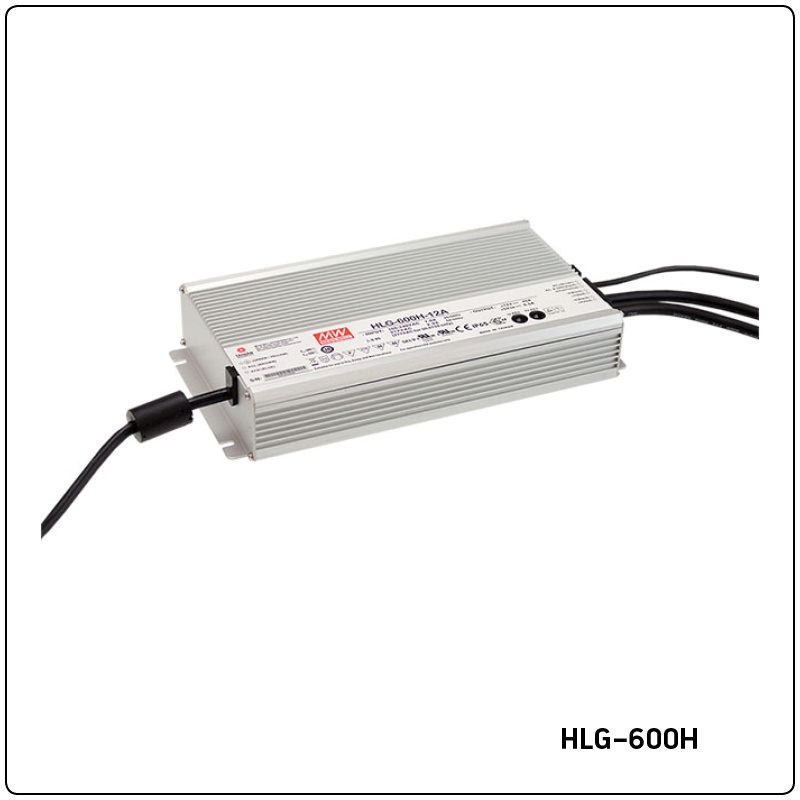

600W
HLG-600H-12A 90-305VAC 127-431VDC 12VDC 40A 280 X 144 X 48.5 mm
HLG-600H-15A 90-305VAC 127-431VDC 15VDC 36A 280 X 144 X 48.5 mm
HLG-600H-20A 90-305VAC 127-431VDC 20VDC 28A 280 X 144 X 48.5 mm
HLG-600H-24A 90-305VAC 127-431VDC 24VDC 25A 280 X 144 X 48.5 mm
HLG-600H-30A 90-305VAC 127-431VDC 30VDC 20A 280 X 144 X 48.5 mm
HLG-600H-36A 90-305VAC 127-431VDC 36VDC 16.7A 280 X 144 X 48.5 mm
HLG-600H-42A 90-305VAC 127-431VDC 42VDC 14.3A 280 X 144 X 48.5 mm
HLG-600H-48A 90-305VAC 127-431VDC 48VDC 12.5A 280 X 144 X 48.5 mm
HLG-600H-54A 90-305VAC 127-431VDC 54VDC 11.2A 280 X 144 X 48.5 mm
  • Ebatlar (Boy x En x Yükseklik) mm.
