İKİ ÇIKIŞLI T-RT SERİLERİ
- Universal AC giriş / Tam skala
(D-120, RD-125 anahtar ile AC giriş seçimli) - Korumalar: Kısa devre, aşırı yük, aşırı voltaj
- Serbest hava akışı soğutmalı
- Küçük boyutlu, yüksek güç yoğunluklu
- %100 tam yük testi
- 2 yıl garanti
| ÜRÜN KODU | BESLEME GERİLİMİ | ÇIKIŞ 1 | ÇIKIŞ 2 | ÇIKIŞ 3 | EBATLAR | |||
|---|---|---|---|---|---|---|---|---|

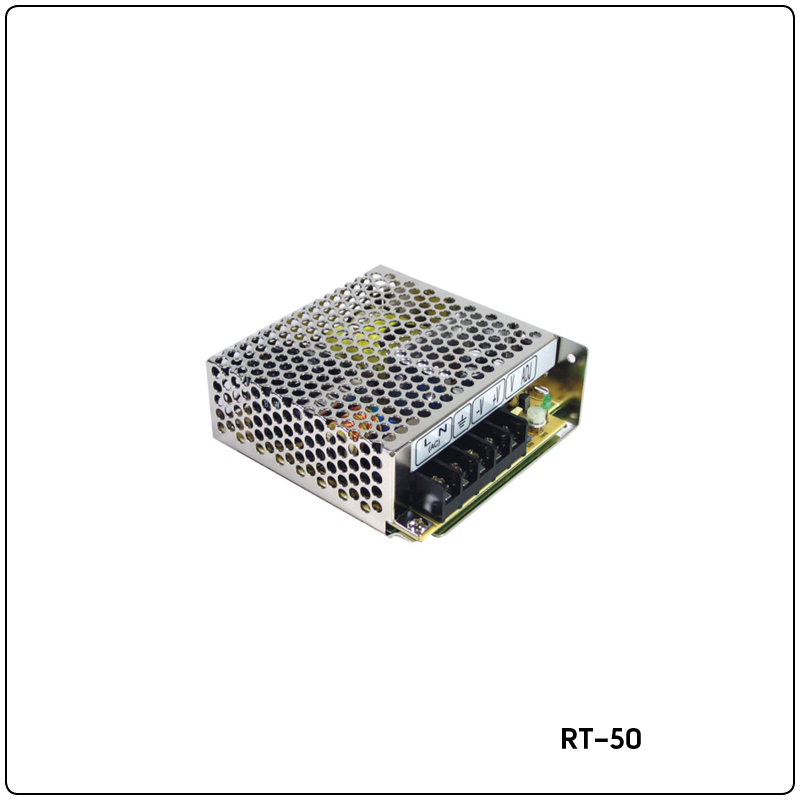

| 50W RT SERİSİ | ||||||||
| RT-50A | 88-264 VAC 125-373 VDC | 5VDC | 4A | 12VDC | 2A | -5VDC | 0.5A | 99 x 97 x 36 mm |
| RT-50B | 88-264 VAC 125-373 VDC | 5VDC | 4A | 12VDC | 2A | -12VDC | 0.5A | 99 x 97 x 36 mm |
| RT-50C | 88-264 VAC 125-373 VDC | 5VDC | 4A | 15VDC | 2A | -15VDC | 0.5A | 99 x 97 x 36 mm |

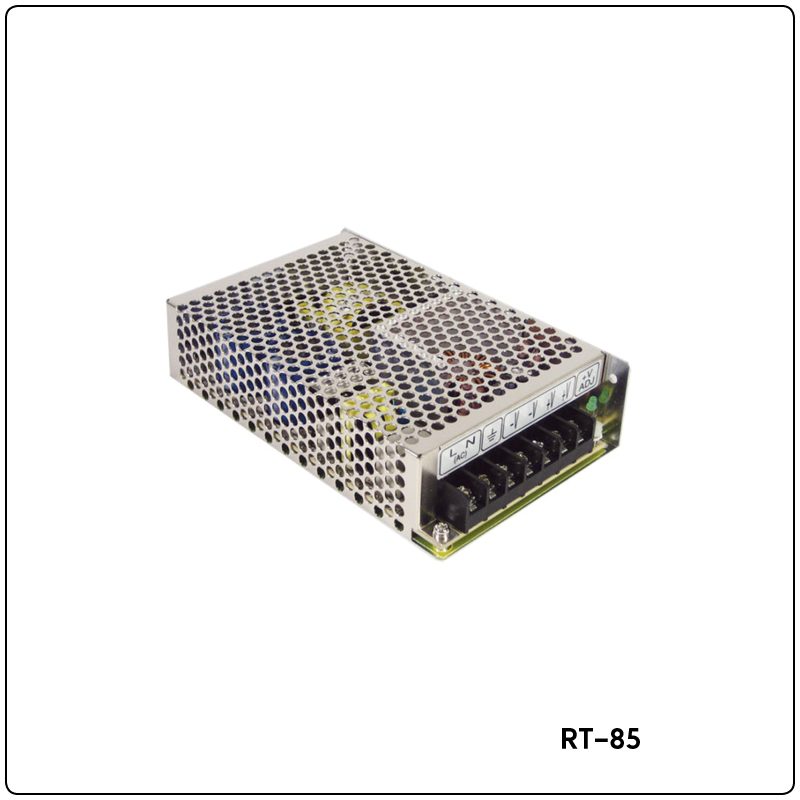

| 85W RT SERİSİ | ||||||||
| RT-85A | 88-264 VAC 125-373 VDC | 5VDC | 8A | 12VDC | 3.5A | -5VDC | 0.5A | 159 x 97 x 38 mm |
| RT-85B | 88-264 VAC 125-373 VDC | 5VDC | 8A | 12VDC | 3.5A | -12VDC | 0.5A | 159 x 97 x 38 mm |
| RT-85C | 88-264 VAC 125-373 VDC | 5VDC | 7A | 15VDC | 3A | -15VDC | 0.5A | 159 x 97 x 38 mm |
| RT-85D | 88-264 VAC 125-373 VDC | 5VDC | 6A | 24VDC | 2A | 12VDC | 1A | 159 x 97 x 38 mm |

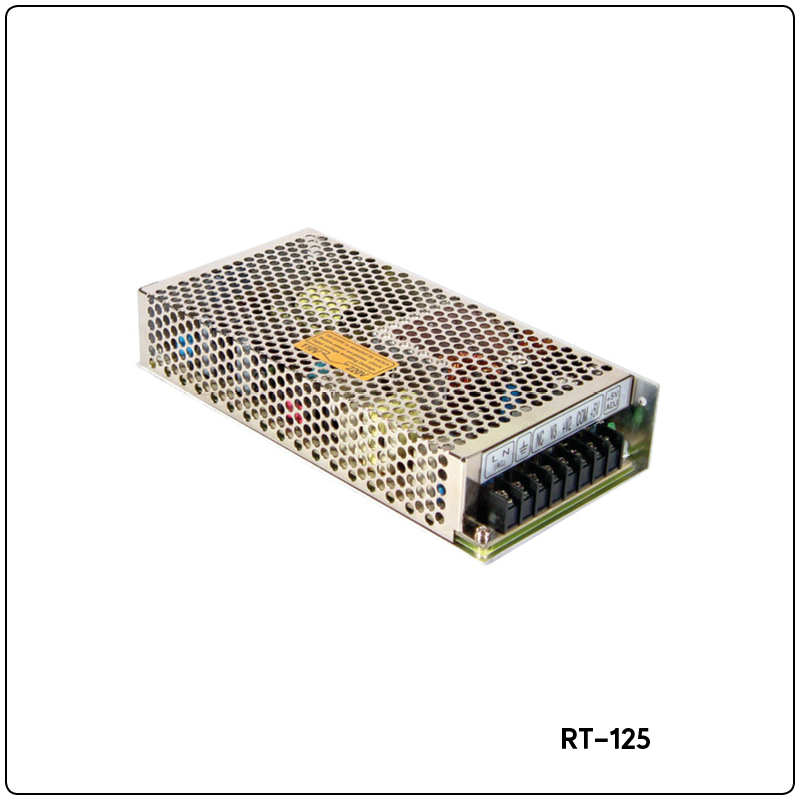

| 125W RT SERİSİ | ||||||||
| RT-125A | 115-230VAC 240-370VDC | 5VDC | 12A | 12VDC | 5.5A | -5VDC | 1A | 199 x 98 x 38 mm |
| RT-125B | 115-230VAC 240-370VDC | 5VDC | 12A | 12VDC | 5A | -12VDC | 1A | 199 x 98 x 38 mm |
| RT-125C | 115-230VAC 240-370VDC | 5VDC | 10A | 15VDC | 4.5A | -15VDC | 1A | 199 x 98 x 38 mm |
| RT-125D | 115-230VAC 240-370VDC | 5VDC | 8A | 24VDC | 2A | 12VDC | 3A | 199 x 98 x 38 mm |

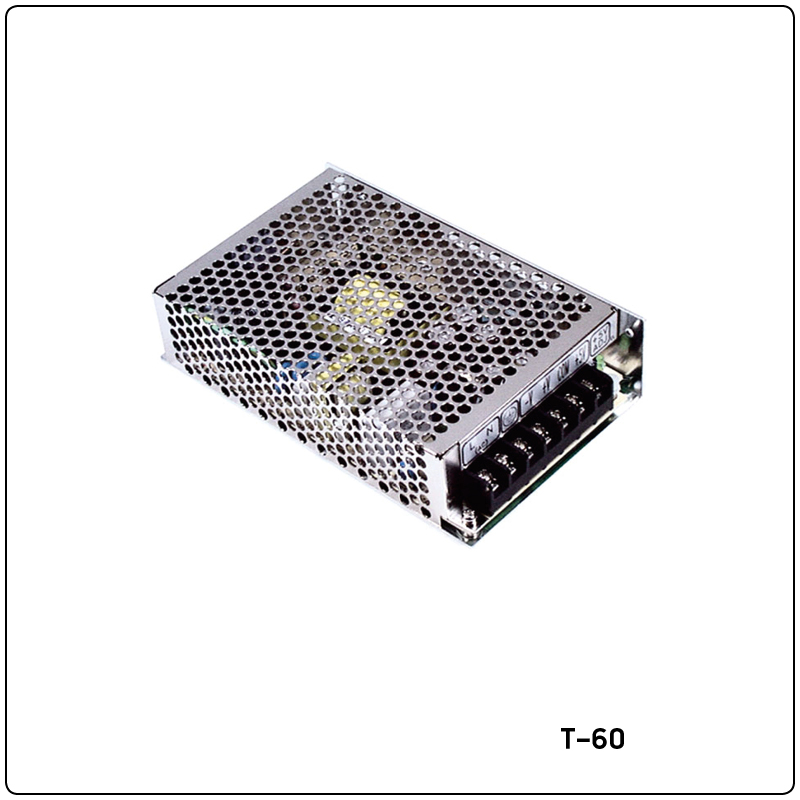

| 60W T SERİSİ | ||||||||
| T-60A | 85-264VAC 120-370VDC | 5VDC | 5A | 12VDC | 2.5A | -5VDC | 0.5A | 159 x 97 x 38 mm |
| T-60B | 85-264VAC 120-370VDC | 5VDC | 5A | 12VDC | 2.5A | -12VDC | 0.5A | 159 x 97 x 38 mm |
| T-60C | 85-264VAC 120-370VDC | 5VDC | 5A | 15VDC | 2A | -15VDC | 0.5A | 159 x 97 x 38 mm |

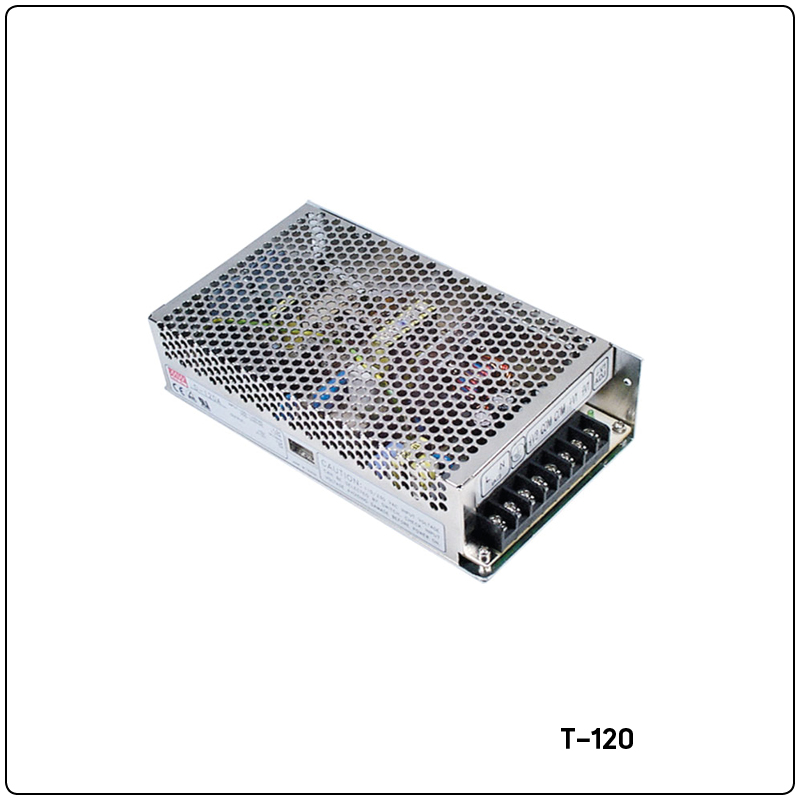

| 120W T SERİSİ | ||||||||
| T-120A | 88-132VAC&176-264VAC | 5VDC | 11A | 12VDC | 5A | -5VDC | 1A | 119 x 110 x 50 mm |
| T-120B | 88-132VAC&176-264VAC | 5VDC | 11A | 12VDC | 4.5A | -12VDC | 1A | 119 x 110 x 50 mm |
| T-120C | 88-132VAC&176-264VAC | 5VDC | 11A | 15VDC | 5A | -15VDC | 1A | 119 x 110 x 50 mm |
| T-120D | 88-132VAC&176-264VAC | 5VDC | 11A | 12VDC | 2.5A | 24VDC | 2A | 119 x 110 x 50 mm |
- Ebatlar (Boy x En x Yükseklik) mm.
- & 110-220VAC Anahtar seçimi
